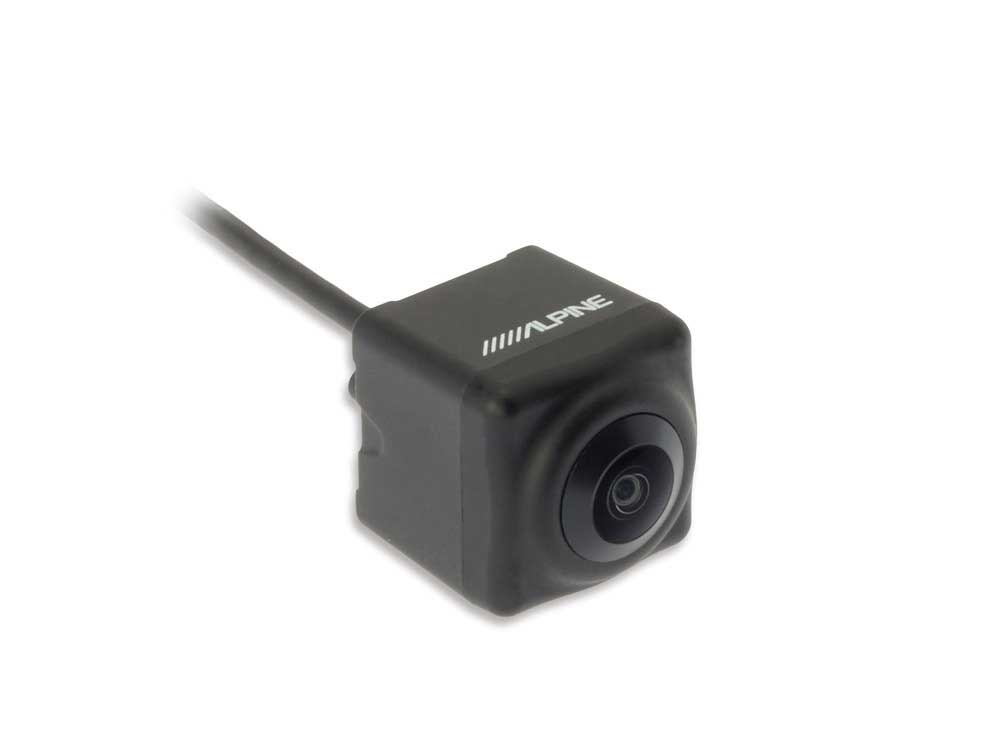

Alpine HCE-C1100D HDR Rückfahrkamera für Direktanschluss
CHF 169.00
4 vorrätig
4 vorrätig
Beschreibung
Alpine HCE-C1100D HDR Rückfahrkamera für Direktanschluss
- High Dynamic Range-Rückfahrkamera
- für Alpine-Geräte mit Kamera-Direkteingang
- NTSC
- 16:9 Bildformat
- 131° horizontal
- 103° vertikal
- Blickwinkel
- extrem kompakt
- 10 m Anschlußkabe
General
- Power Requirement: DC 9V to DC 15.6V
- Negative Ground
- Power Consumption: 1.2W (12V)
- Operating Temperature (Box Unit): -30°C – +70°C
- Weight Camera: 27g (camera only)
- Weight Box: 83g (including cord)
Camera
- Output Image: Mirror Image, Composite Video NTSC, Aspect Ratio 4:3
- Output Drive Capacity: 75 Ohms (1Vp-p)
- Image Sensor: 1/3.7 inch CMOS image sensor
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
- Lens Focal Length: f=1.34mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 131°, Vertical = 103°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C – +70°C
- Illumination Range: Approximately 1.5 to 100klx
Dokumente
 96007_OM_HCE-C1100_HCE-C1100D_EN.pdf |
Specification
| Blickwinkel Horizontal | 131° |
|---|---|
| Blickwinkel Vertikal | 103° |
| Hersteller | Alpine Zubehör, Alpine |
| Kameras Bauform | Unterbaumontage |
